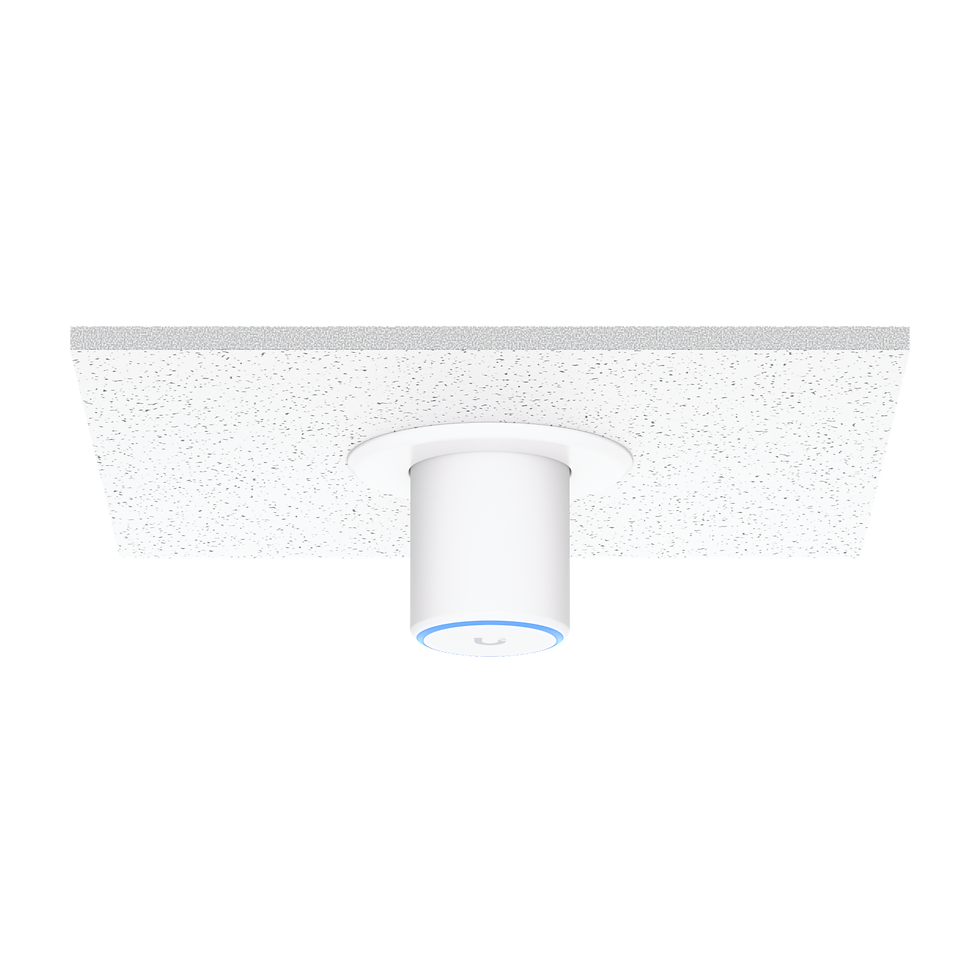

Ubiquiti Access Point U6-Mesh-WLAN 6 im Innenbereich
4800 Mbit/s, 573.50 Mbit/s
Sleek, indoor/outdoor* WiFi 6 access point designed for mesh applications.
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- WiFi 6 (4x4 MIMO)
- Powered using PoE
- Versatile tabletop, wall, or pole mounting
- Compact form factor
Hersteller Daten Ubiquiti Zugangspunkt U6-Mesh-WLAN 6
Ubiquiti Access Point U6-Mesh-WLAN 6
Die wichtigsten Spezifikationen auf einen Blick
WLAN Standard Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax
Max. Port Geschwindigkeit 1000 Mbit/s
Anzahl RJ45/LAN Ports 1
Betriebsmodi Access Point
PoE Standard 802.3af (PoE)
Anwendungsbereich Business, Home Office
Allgemeine Informationen
Hersteller Ubiquiti
Kategorie Access Point
Herstellernr. U6-MESH
Access Point Eigenschaften
Betriebsmodi Access Point
Antennengewinn 5 dB
Anzahl RJ45/LAN Ports 1
Max. Port Geschwindigkeit 1000 Mbit/s
Max. Port Geschwindigkeit 1000 Mbps / 1 Gbps
Schutzart (IP Code) IPX5
WLAN Standard
WLAN Standard Wi-Fi 1 / 802.11b, Wi-Fi 2 / 802.11a, Wi-Fi 3 / 802.11g, Wi-Fi 4 / 802.11n, Wi-Fi 5 / 802.11ac, Wi-Fi 6 / 802.11ax
5 GHz Übertragungsrate 4800 Mbit/s
2.4 GHz Übertragungsrate 573.50 Mbit/s
WLAN Frequenzband Dual-Band
WLAN Verschlüsselung WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Anwendungsbereich
Anwendungsbereich Business, Home Office
Montageort Decke, Tisch, Wand
Anwendungsort Outdoor
Energieversorgung
Energieversorgung Netzbetrieb
PoE Standard 802.3af (PoE)
Leistungsaufnahme 11.40 W
Produktdimensionen
Länge 159.50 mm
Breite 48.50 mm
Höhe 159.50 mm
Gewicht 400 g
Verpackungsdimensionen
Länge 18.60 cm
Breite 12.20 cm
Höhe 9.90 cm
Gewicht 1.02 kg
Hersteller Daten Ubiquiti Zugangspunkt U6-Mesh-WLAN 6
Per PostLogistics oder Abholung
Mechanical Dimensions Ø48.5 x 159.5 mm (Ø1.9 x 6.28") Weight 400 g (0.88 lb) Enclosure material Plastic, aluminum Mount materials Plastic Weatherproofing IPX5 Hardware Networking interface (1) GbE RJ45 port Management interfaces Ethernet
BluetoothPower method PoE Power supply UniFi PoE switch
48V, 0.32A PoE adapter (included)Supported voltage range 44—57V DC Max. power consumption 11.4W Max. TX power
2.4 GHz
5 GHz
22 dBm
26 dBmMIMO
2.4 GHz
5 GHz
2 x 2 (UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)Throughput rate
2.4 GHz
5 GHz
573.5 Mbps
4.8 GbpsAntenna gain
2.4 GHz
5 GHz
3 dBi
5 dBiLEDs White/blue Button Factory reset Mounting Wall, desktop, pole mount (Included)
Ceiling mount (Optional)Operating temperature -30 to 60° C (-22 to 140° F) Operating humidity 5 to 95% noncondensing Certifications CE, FCC, IC Software WiFi standards 802.11a/b/g
WiFi 4/WiFi 5/WiFi 6Wireless security WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3) BSSID 8 per radio VLAN 802.1Q Advanced QoS Per-user rate limiting Guest traffic isolation Supported Concurrent clients 300+ Zero wait DFS Yes*
*Supported with upcoming firmware versionsSupported Data Rates 802.11a 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b 1, 2, 5.5, 11 Mbps 802.11g 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11n (WiFi 4) 6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40) 802.11ac (WiFi 5) 6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160) 802.11ax (WiFi 6) 7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160) Application Requirements UniFi Network Version 6.2.51 and later
